WDT5050A Linear module
WDT5050A Linear module
WDT5050A is an economical synchronous belt linear module. The slider and end seat are processed by die-casting technology, which provides better cost control.

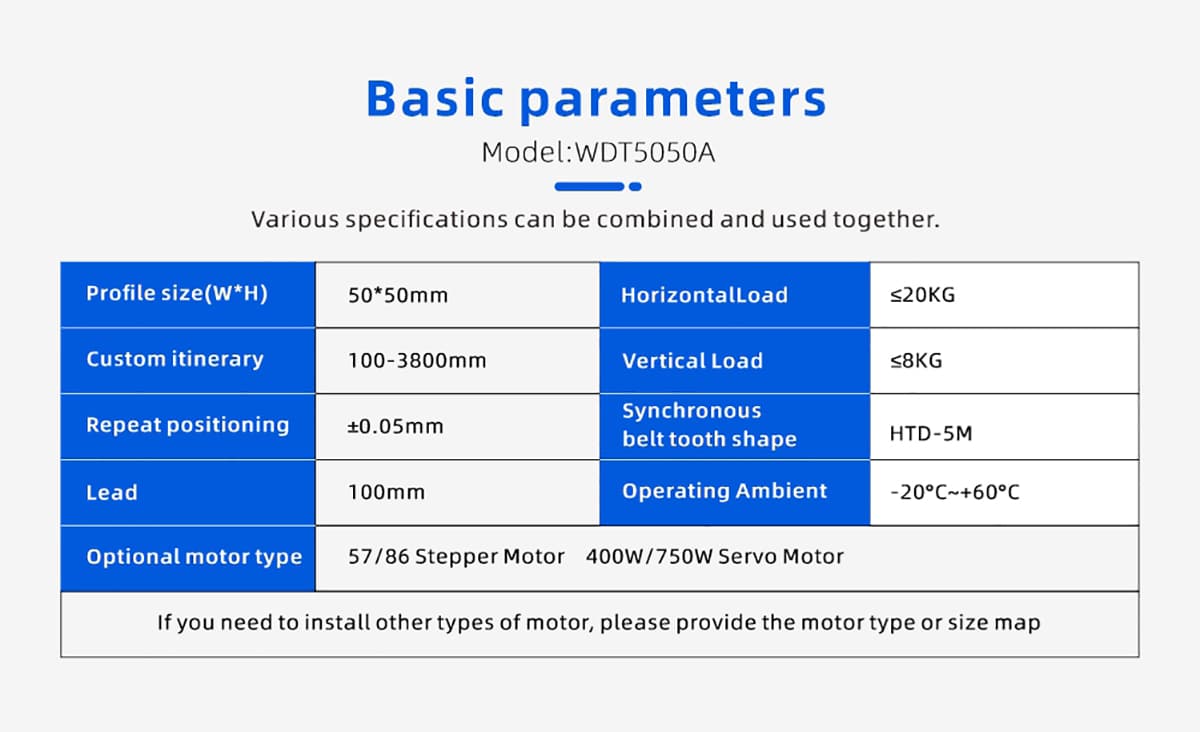

Basic parameters
Length and weight parameter table
| Effective stroke | 100 | 200 | 300 | 400 | 500 | 600 |
| Total length | 400 | 500 | 600 | 700 | 800 | 900 |
| weight (kg) | 3.14 | 3.48 | 3.82 | 4.16 | 4.5 | 4.84 |

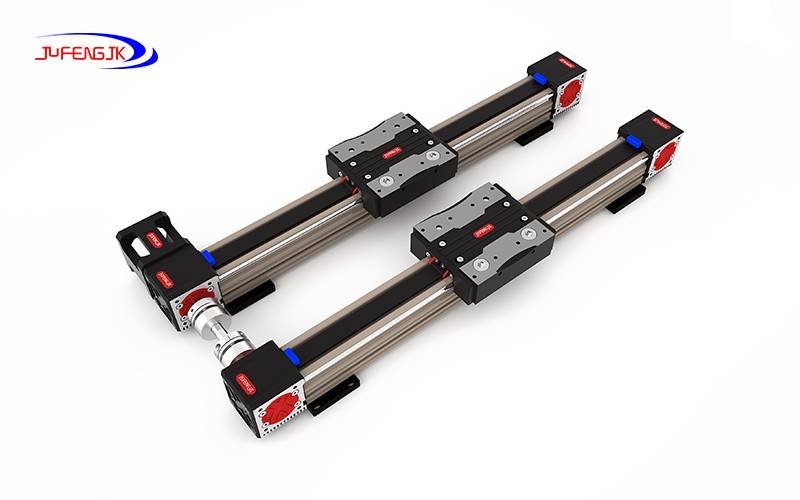

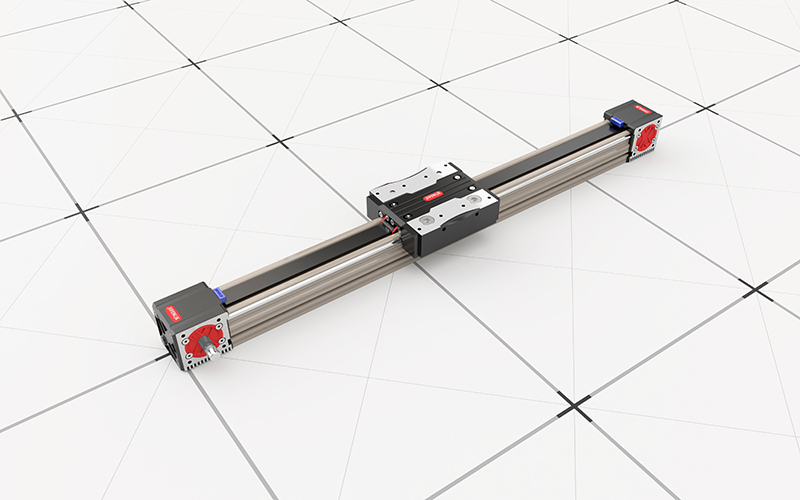

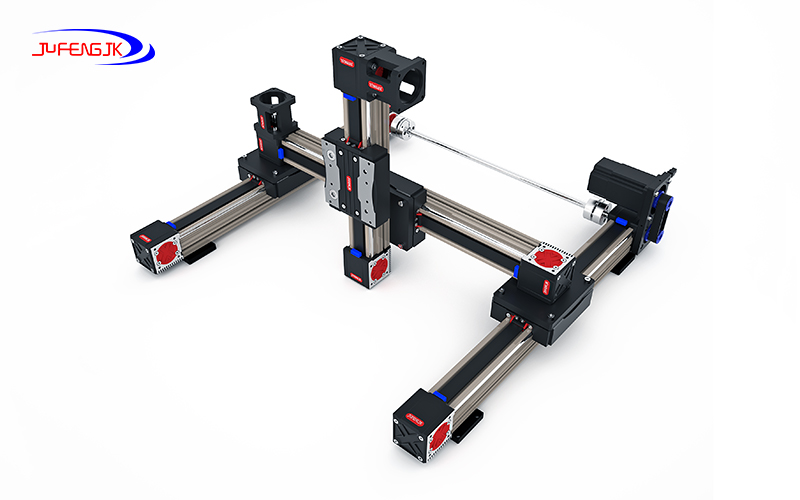

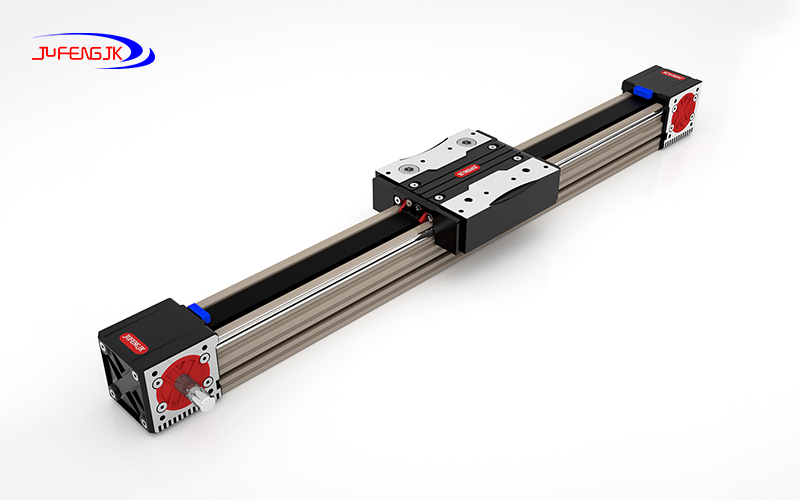

Product images
