WDT5050 Linear module
WDT5050 Linear module
Linear module is a kind of linear transmission device, which can be used in the mechanical equipment, such as CNC machine tool, automatic assembly line, packaging machinery and so on. It realizes the precise positioning, feeding and other linear motion control requirements of workpiece in the process of machining, assembly and transportation by transforming rotary motion into linear motion.

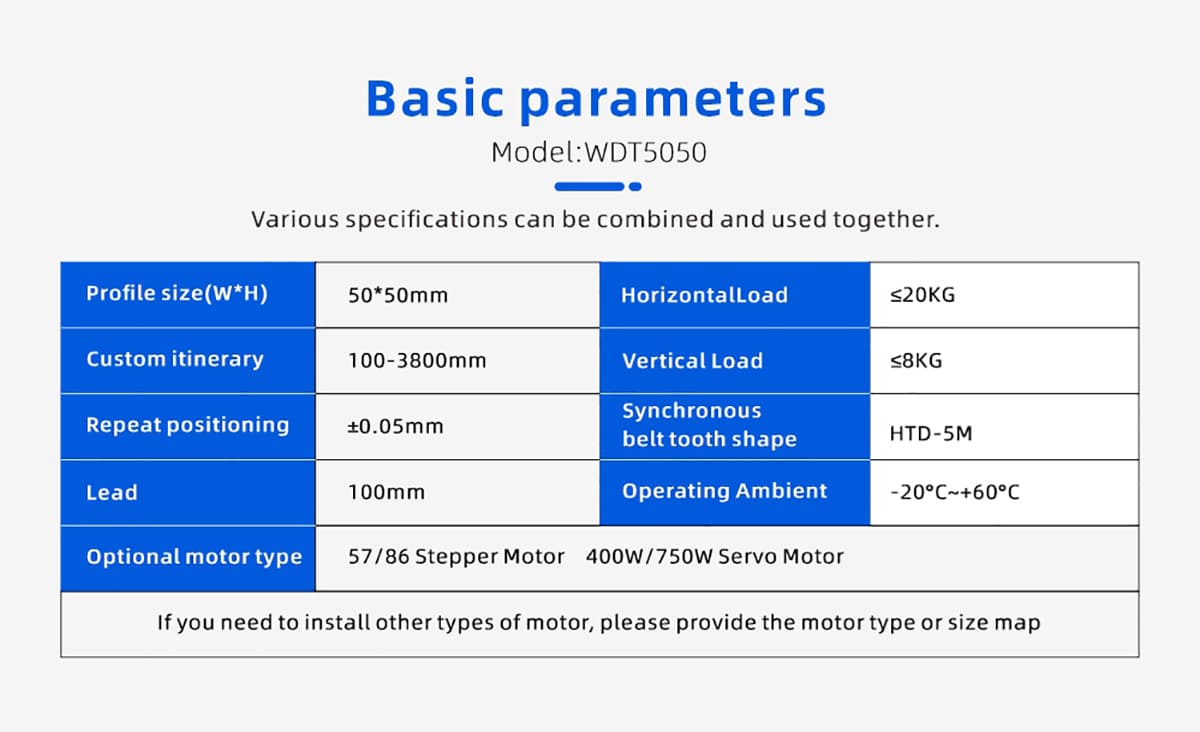

Product parameters

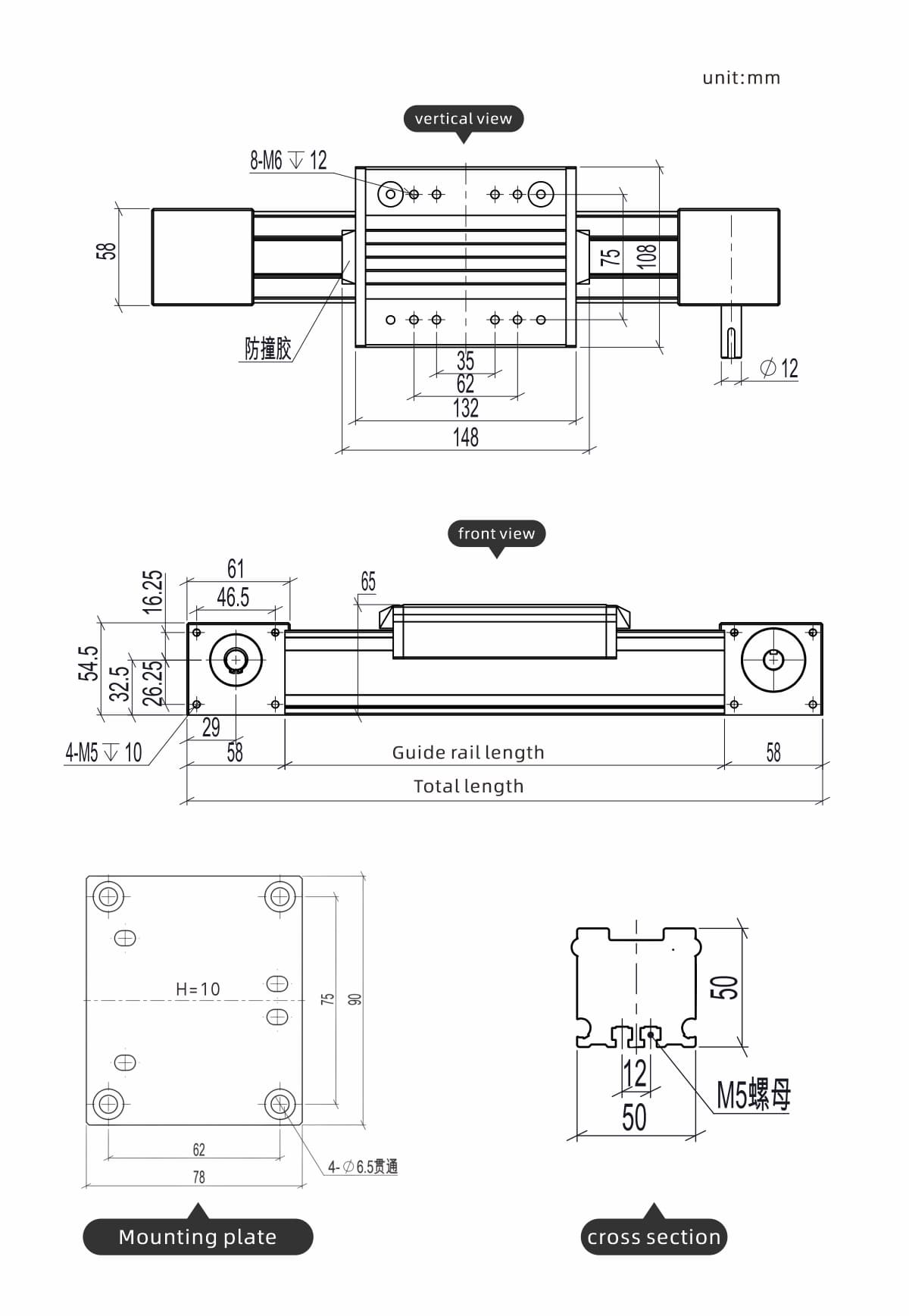

Length and weight parameter table
| Effective stroke | 100 | 200 | 300 | 400 | 500 | 600 |
| Total length | 396 | 496 | 596 | 696 | 796 | 896 |
| weight (KG) | 3.2 | 3.57 | 3.94 | 4.31 | 4.68 | 5.05 |

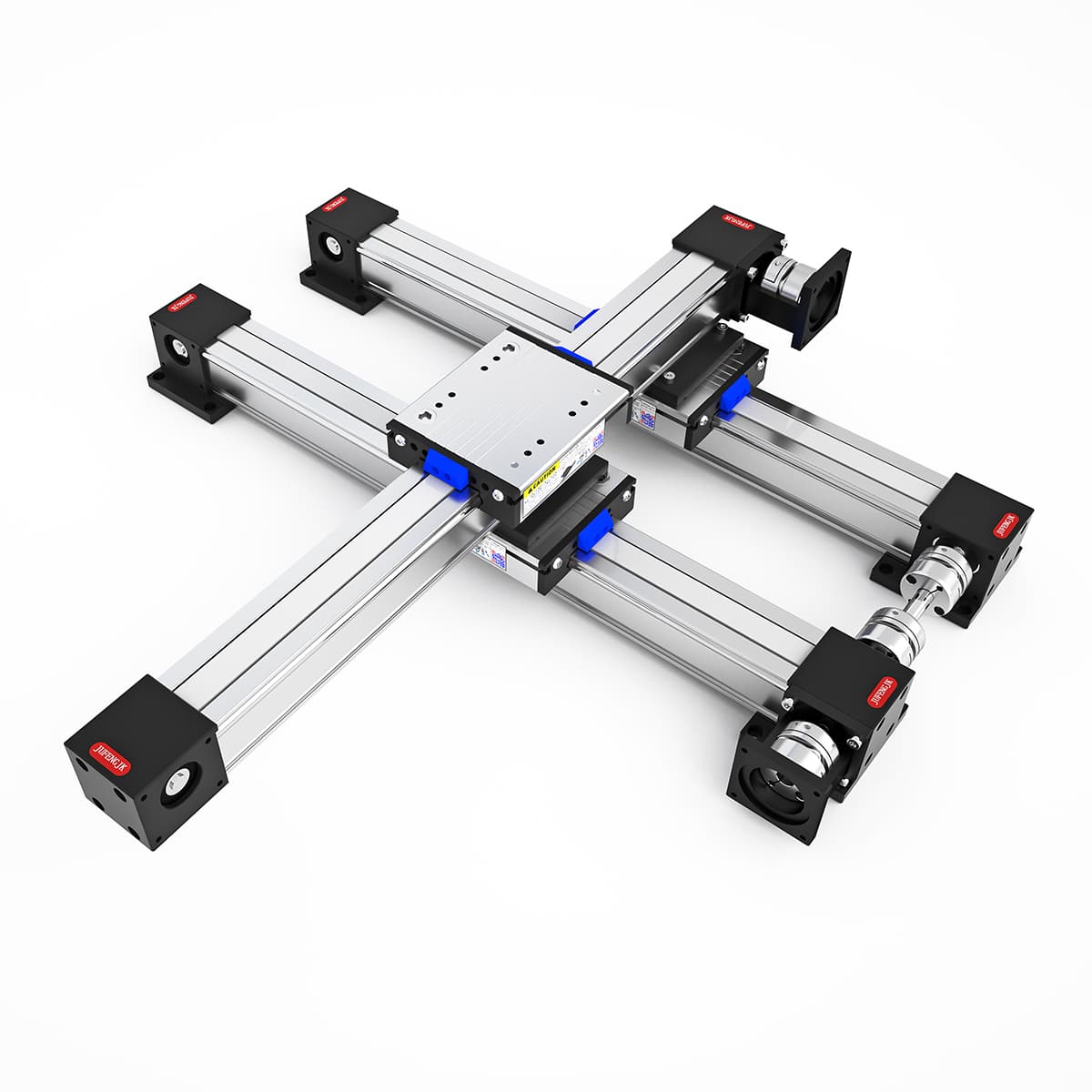

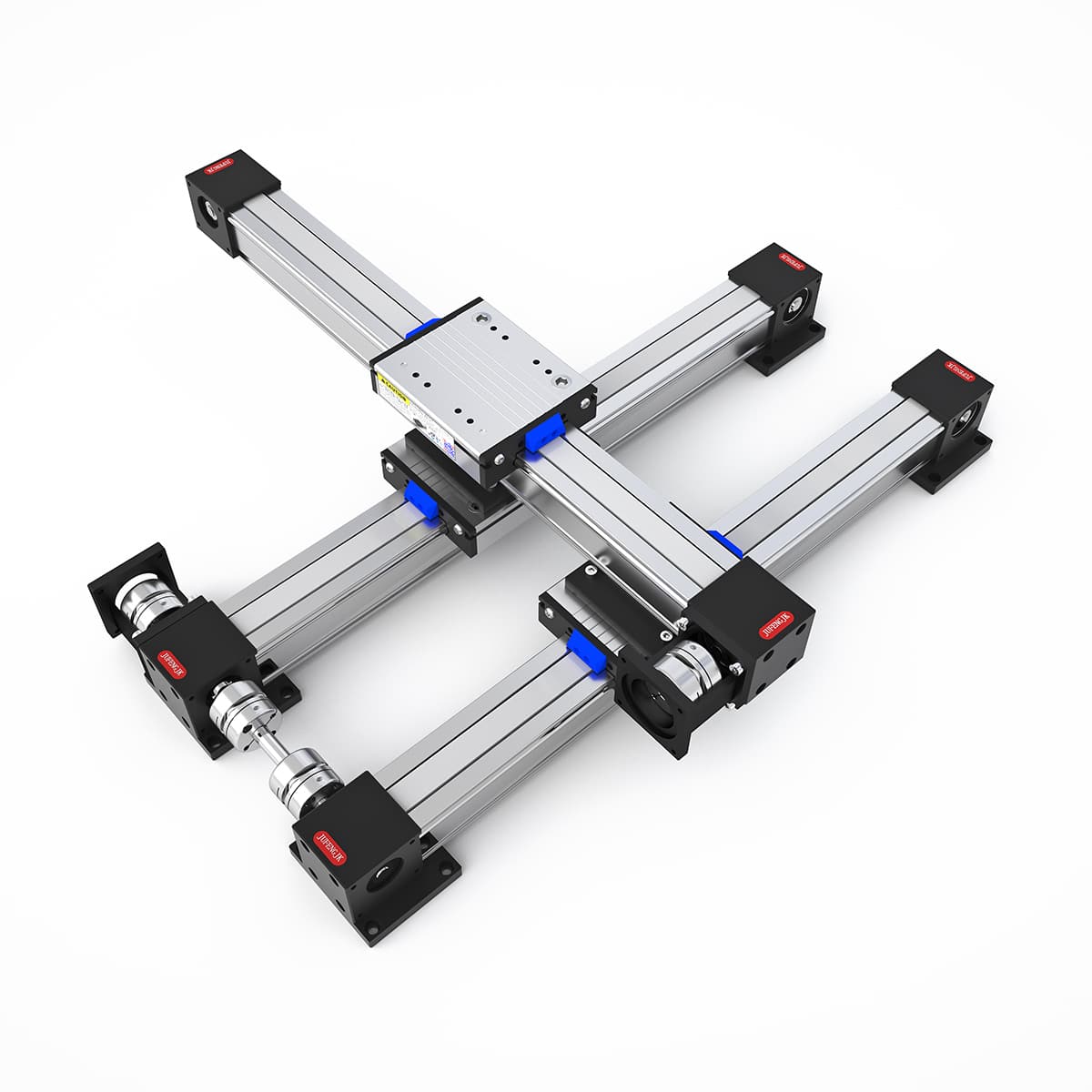

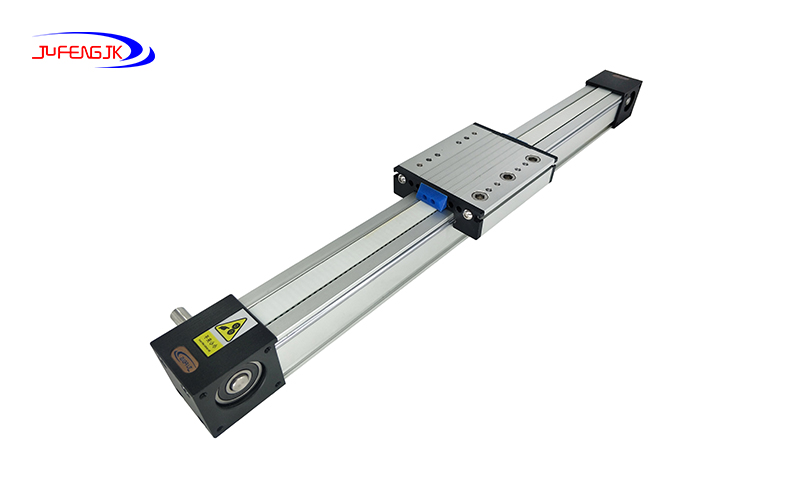

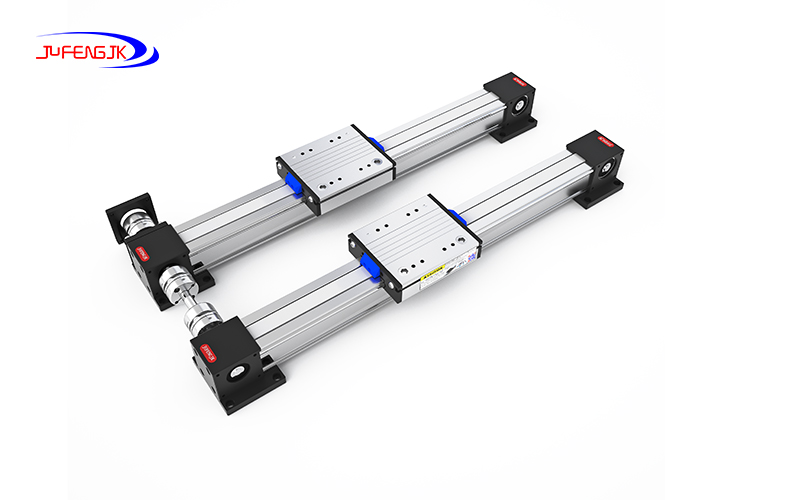

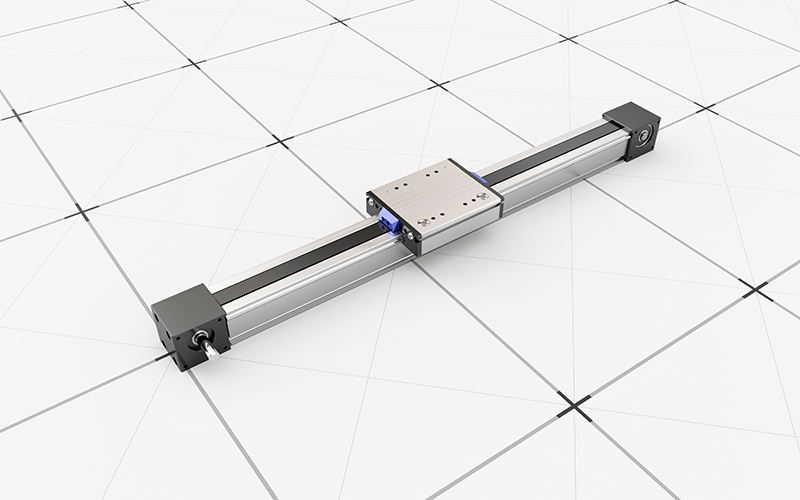

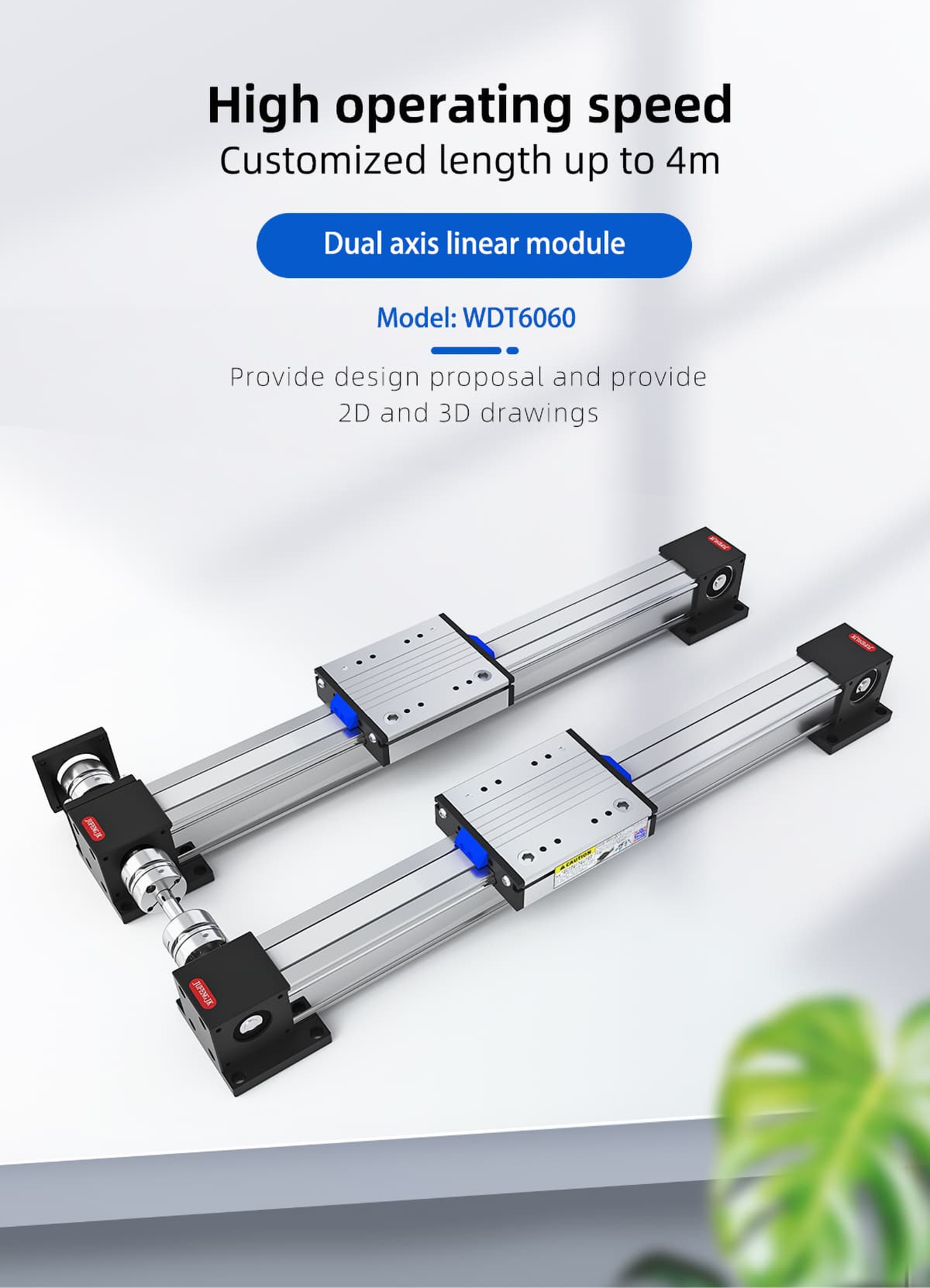

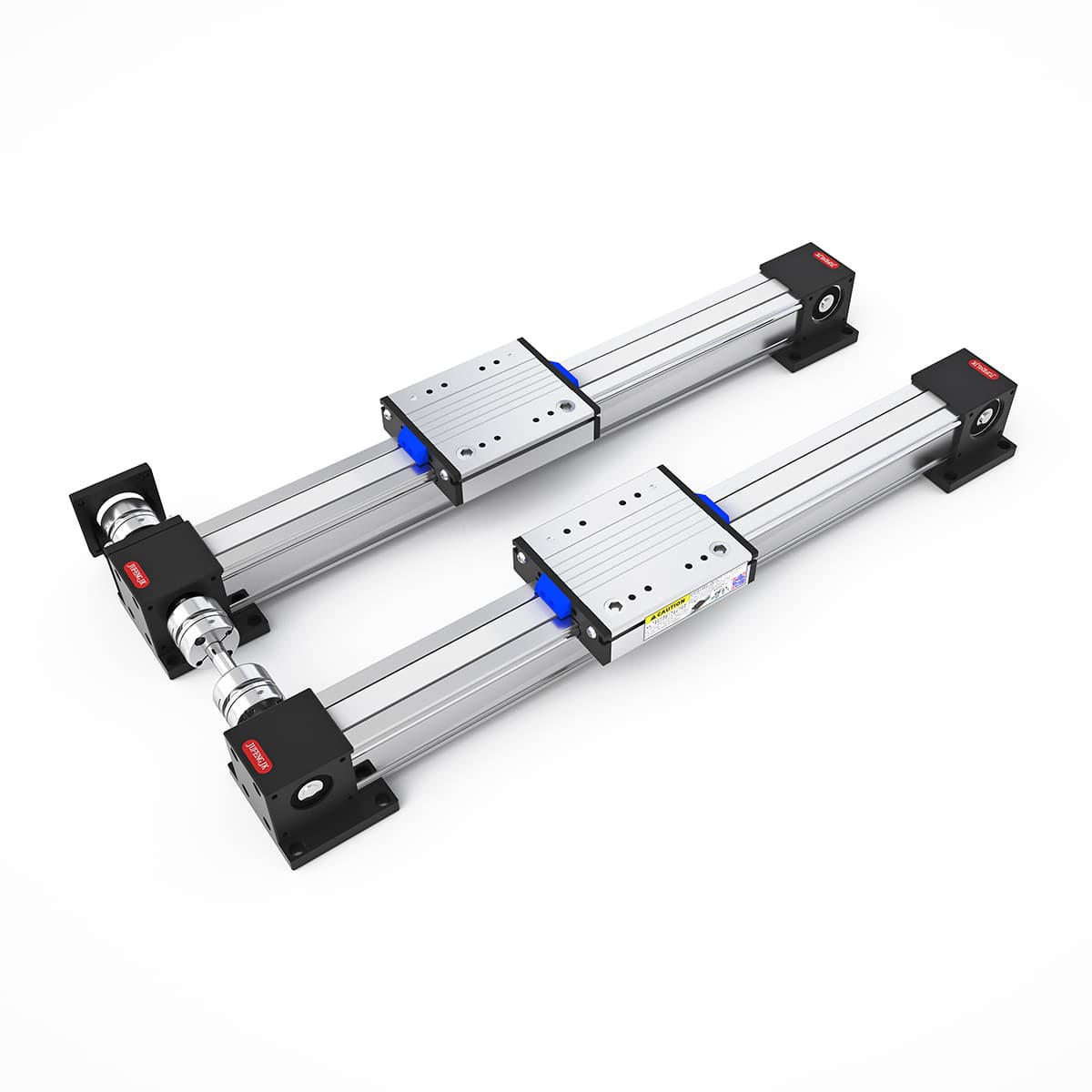

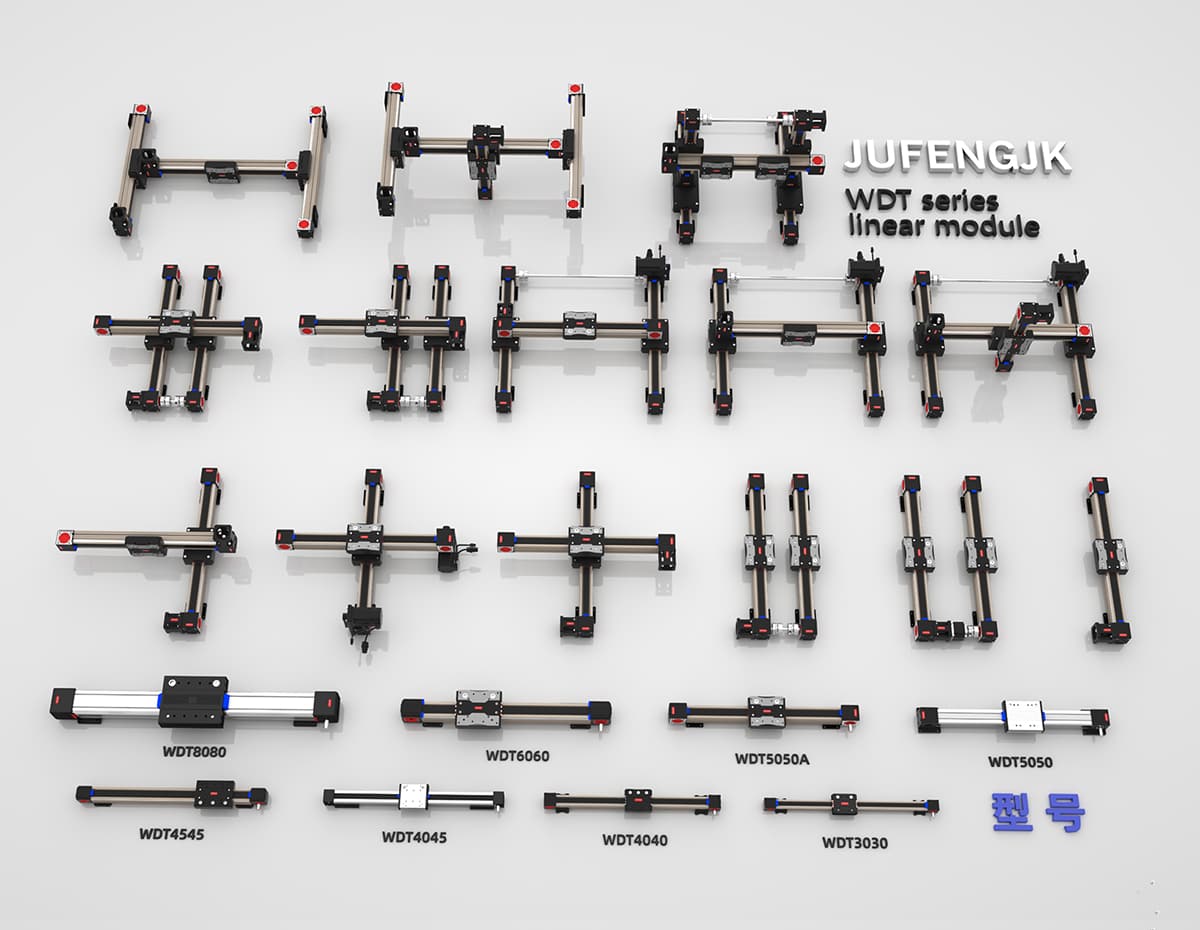

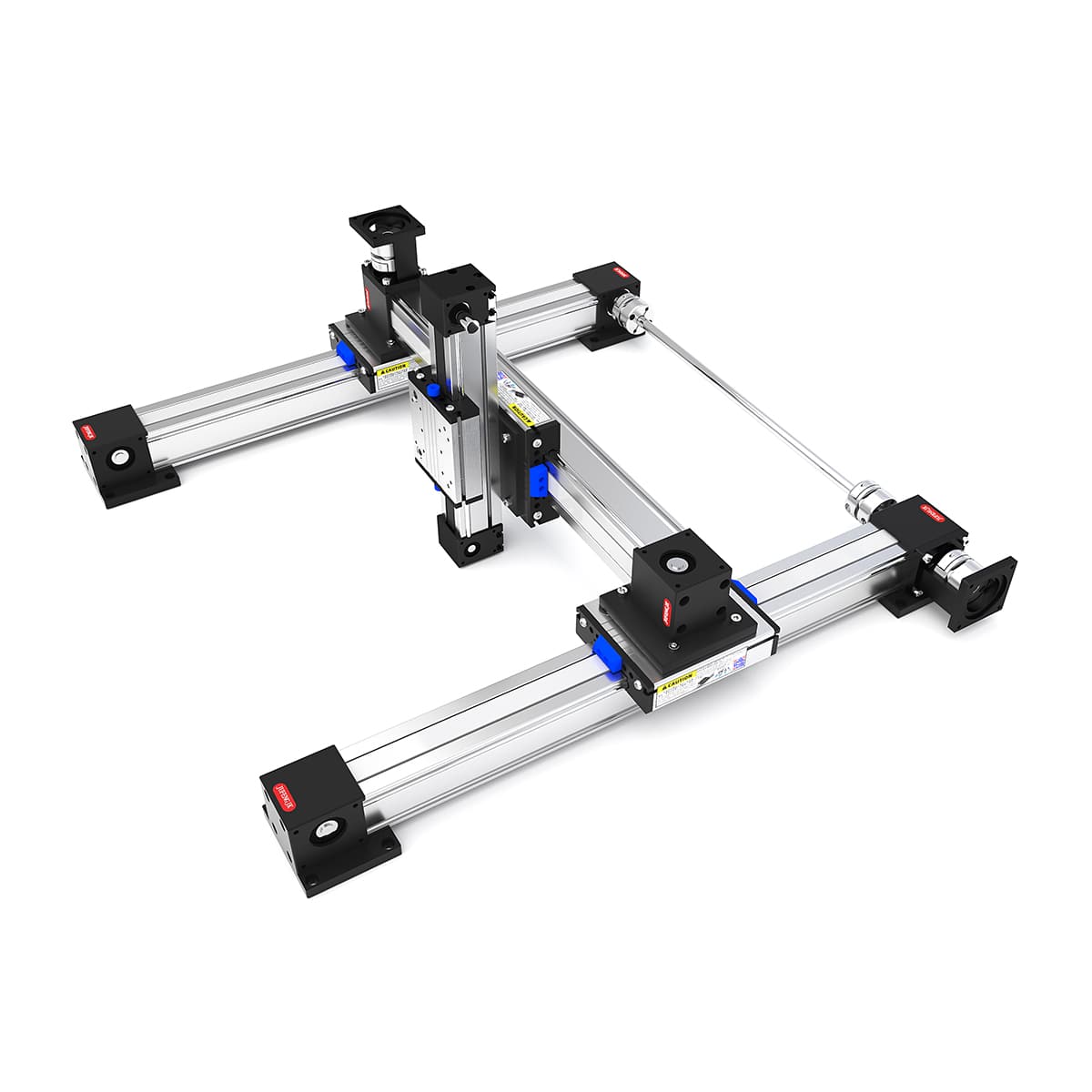

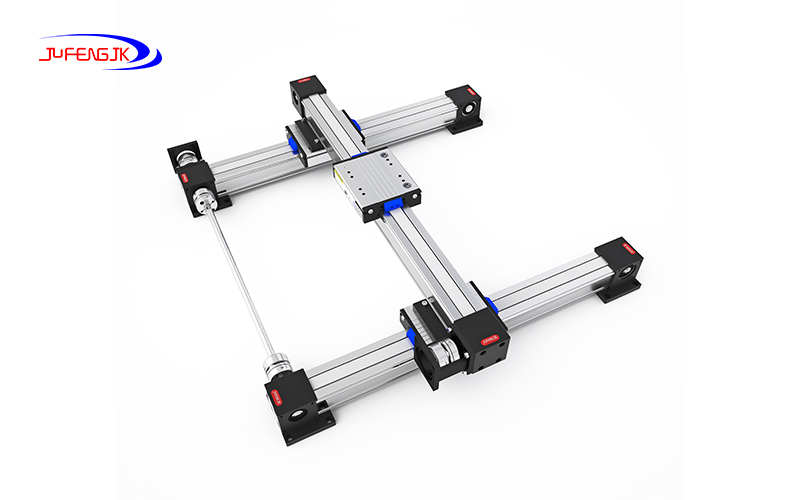

Product images

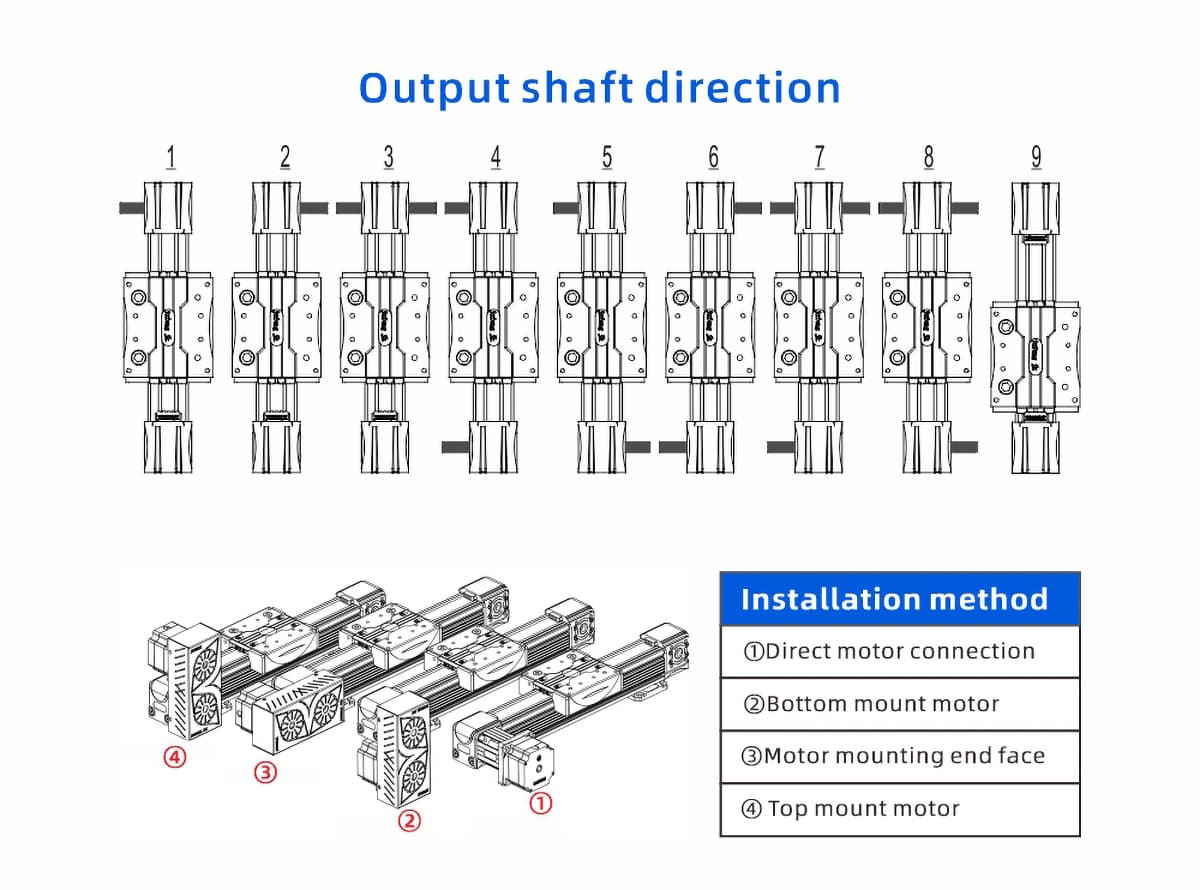

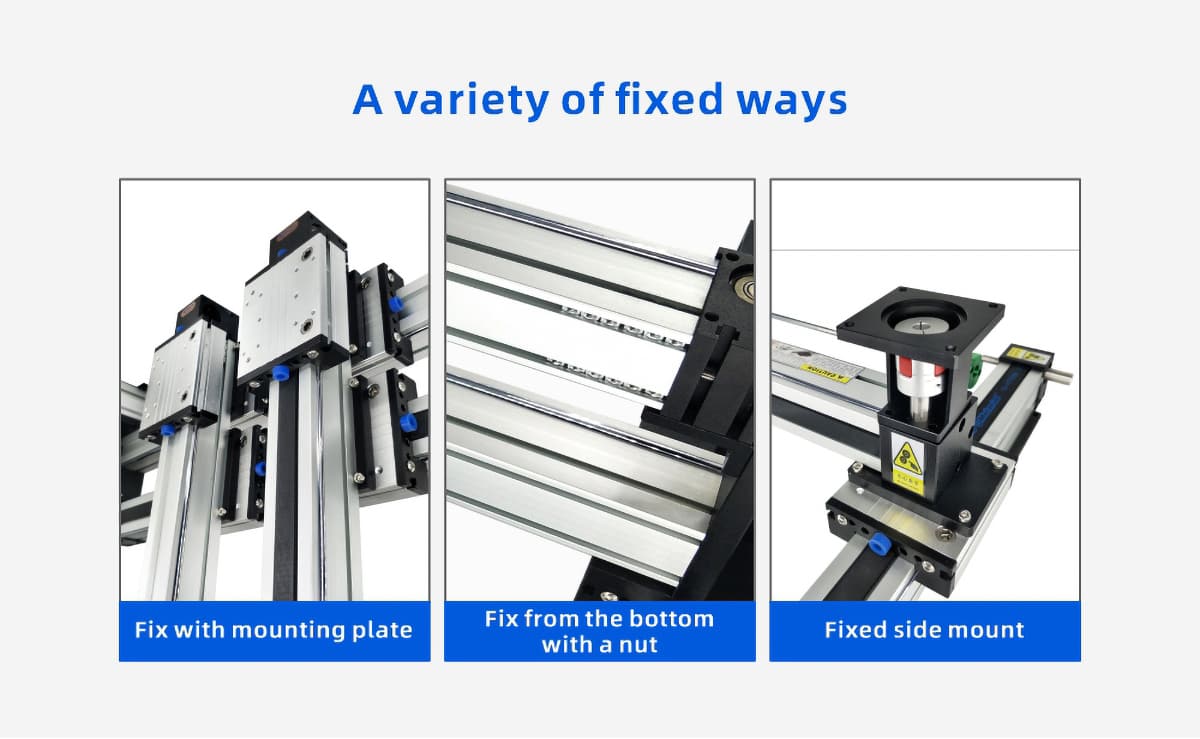

Installation method
FAQ
Question 1: How can I purchase your products?
Answer: You can browse and select the products you need on our official website. There is contact information on the website, and you can also contact us through the link at the bottom of the homepage on Alibaba.com.
Question 2: What should I pay attention to when purchasing your products?
Answer: If you need to achieve a specific function, such as cutting, spraying, or handling, please describe it. We will help you select our products based on your requirements for load, operating speed, accuracy, etc.
Question 3: Can you provide other products that I need?
Answer: If you need other products, you can describe its function, material, model, provide pictures or drawings, and after confirming the sample, you can place a bulk order.
Question 4: Do you provide after-sales service for your products/services?
Answer: Yes, we provide after-sales service. If you encounter any problems while using our products or services, you can contact our customer service at any time, and we will provide a solution for you as soon as possible.
